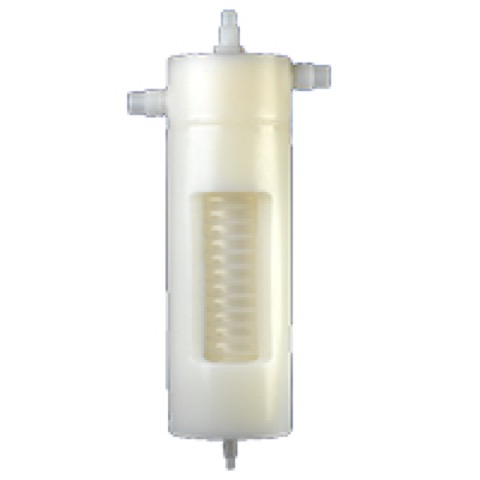

XC Series, Inline Exchanger

Polypro and PVDF Construction

For virtually any wet chemistry application.

  • FEATURES
    • Ideal for one-pass cooling of chemicals dumping to waste stream and innovatively eliminates high costs associated with water aspiration.
    • Less surface area required for same BTU exchange compared to most other fluoropolymer exchangers.
    • Heavy wall, large diameter tubing improves circulation and minimizes pressure drop.
  • SPECIFICATIONS
    • Sizes: 1.5 ft2 (.14m2), 2.5 ft2 (.23m2), and 3.5 ft2 (.33m2) of exchange area.
    • Temperature range: -50°C(-60°F) to 150°C (302°F)
    • Maximum pressure/temperature rating: Tube (PFA): 35 PSIG (241 kPa) at 120ºC (250ºF), Shell (PP): 30 PSIG (206 kPa) at 82ºC (180ºF), Optional shell (PVDF): 30 PSIG (206 kPa) at 135ºC (275ºF)
    • Connections: Fluid (tube): ½-inch (12mm) male flare PFA, Shell: ¾-inch (19mm) male flare PFA, Shell drain: ¼-inch (6mm) male flare PFA.
  • OPTIONS AVAILABLE (CONSULT FACTORY)
    • ¼-inch (6.4mm) to ¾-inch (19mm) Super Pillar 300 Type® connections.
    • Custom sizes based on application.
    • PVDF shell.
