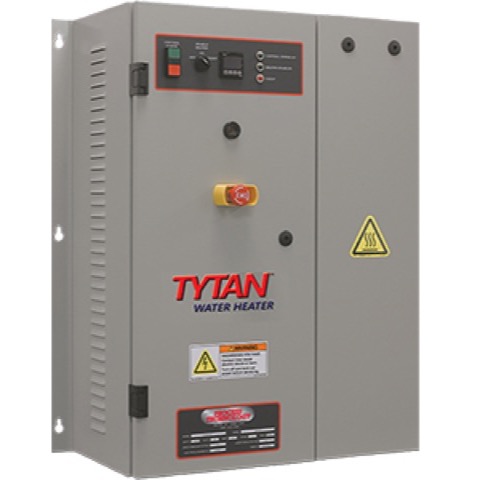

TYTAN INLINE WATER HEATER

Back

Tytan Instantaneous Water Heater

Safest and most reliable water heater on the market

Ultra-fast heatup and superior temperature stability, regardless of application

  • FEATURES
    • >99% element efficiency contributes to the low cost of ownership (COO) and excellent return on investment (ROI)
    • 100% of titanium heating elements provide very clean performance for precision cleaning applications.
    • Excellent temperature accuracy over a wide flow range can substantially improve process consistency.
    • Installation is fast and easy, and the TytanTM requires virtually no maintenance
    • Certification: cULus
  • SPECIFICATIONS
    • 12,000 watts up to 144,000 watts
    • 208 to 480 volts, three phase
    • PID microprocessor-based digital temperature control
    • Temperature Limit; 194° F (90° C), depending on operating conditions
    • Temperature Accuracy: +/-1°F, depending on operating conditions
    • All titanium wetted surfaces
    • Inlet/Outlet: 1"MNPT through 72kW; 2" MPNT 96kW and higher
    • Housing: NEMA 1 rated, powder coated metal enclosure
  • OPTIONS AVAILABLE (CONSULT FACTORY)
    • CE or S2 compliance
    • Remote Interface
    • PLC Control
    • Stainless steel elements and wetted parts
