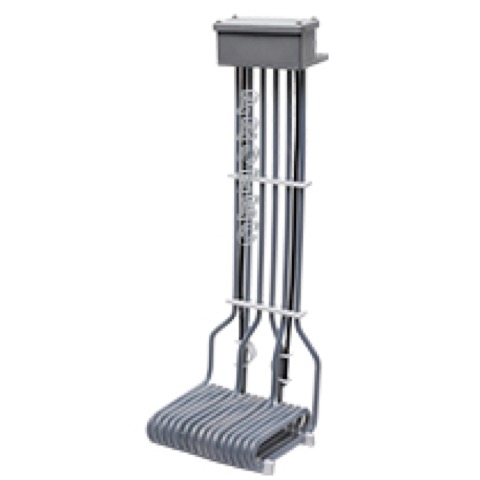

3HXOL Style Fluoropolymer Heater

3 Phase Bottom Heater

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

·       FEATURES

• PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
• Low watt density design 10 watts/square inch (1.5w/cm²).
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
• Certification: cULus. CE certified (except 600 volts).

·       SPECIFICATIONS

• 3000 - 18000 watts
• 120 to 600 volts (600 volts on 12,000 watts or lower only)

·       OPTIONS AVAILABLE (CONSULT FACTORY)

• Resettable thermal protectors
• Polypropylene guards (sold separately)
• Custom configurations and lengths
• Custom wire and conduit lengths
