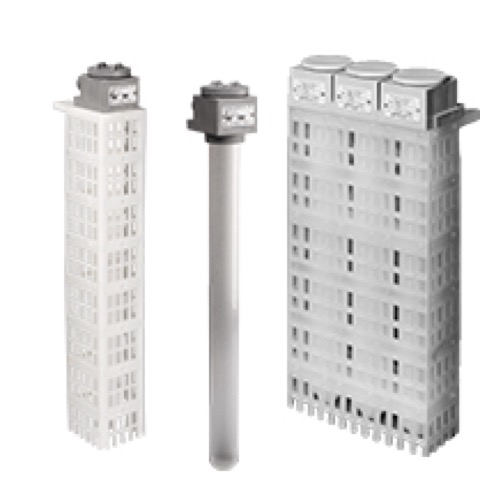

QM Series Heaters ( QUARTZ )

Quartz Single or Triple Over the Side

For Acidic Solutions

Compatible with many aggressive chemistries.

• FEATURES
  • Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly) .
  • For use in most aqueous acidic plating solutions and pickling tanks.
  • Watt densities up to 25 watts/square inch (4 w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded construction.
  • Replaceable P1 protector standard for solutions up to 180°F (82°C).
  • Certification: cULus (except steel and 600 volts)
• SPECIFICATIONS
  • 500 - 30000 watts
  • 120 - 600 volts, single or 3 phase.
• OPTIONS AVAILABLE (CONSULT FACTORY)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
  • Lower watt densities for highly viscous solutions.
